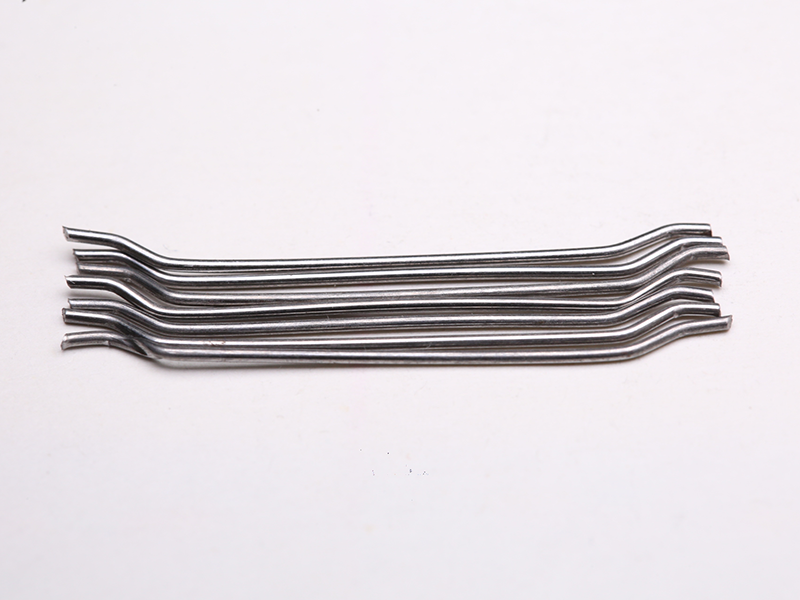

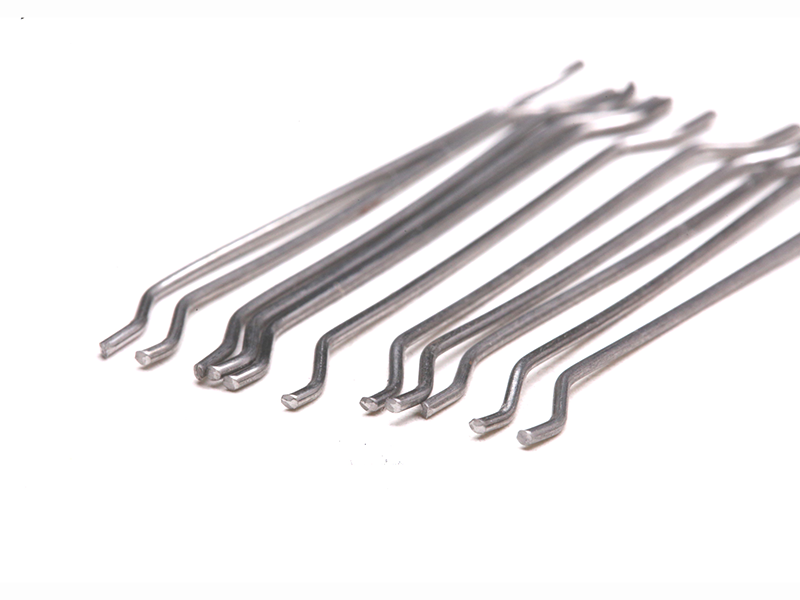

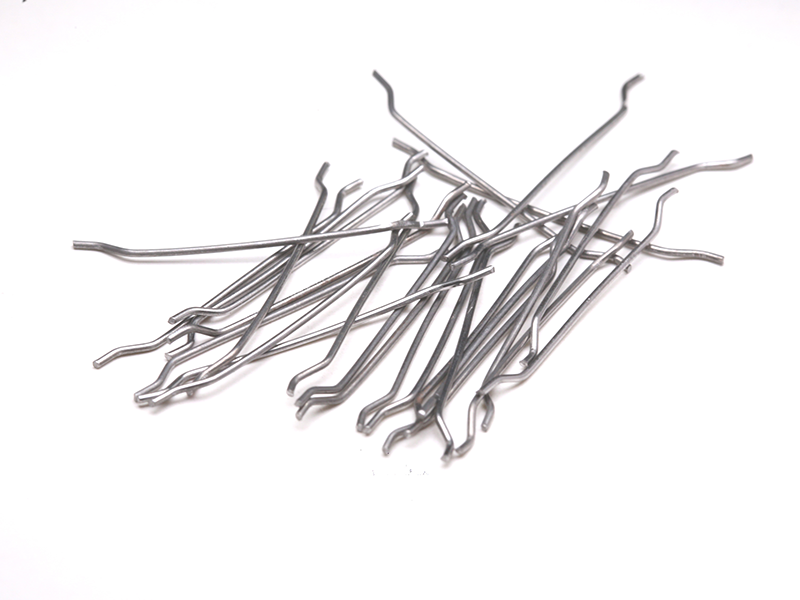

Hooked ends steel fiber
Description
Hooked ends steel fiber use hook technical, this appearance ensure the best status between steel fiber and concrete. It is easily disperse when mixing the concrete
The steel fiber is made of high quality low carbon steel wire, with the characteristic of the high tensile strength, good toughness etc. This steel fiber is widely used in construction fields for concrete reinforcement.
According to the standard of JG/T3064-1999 steel fiber concrete, YB/T151-1999 steel fiber for concrete and ASTM A820-96 steel fiber for steel fiber reinforce concrete.
Specification
|
Type |
Diameter (mm) |
Length (mm) |
Length/diameter |
Tensile strength |
|
H-50/50 |
1.0 |
50 |
50 |
>1000MPa >1100MPa >1300MPa >1800MPa |
|
H-65/60 |
0.92 |
60 |
65 |
|
|
H-55/50 |
0.9 |
50 |
55 |
|
|
H-80/60 |
0.75 |
60 |
80 |
|
|
H-65/50 |
0.77 |
50 |
65 |
|
|
H-45/35 |
0.77 |
35 |
45 |
|
|
H-55/30 |
0.54 |
30 |
55 |
|
|
H-60/30 |
0.5 |
30 |
60 |
|
|
H-50/25 |
0.5 |
25 |
50 |
|
|
H-60/25 |
0.4 |
25 |
60 |
